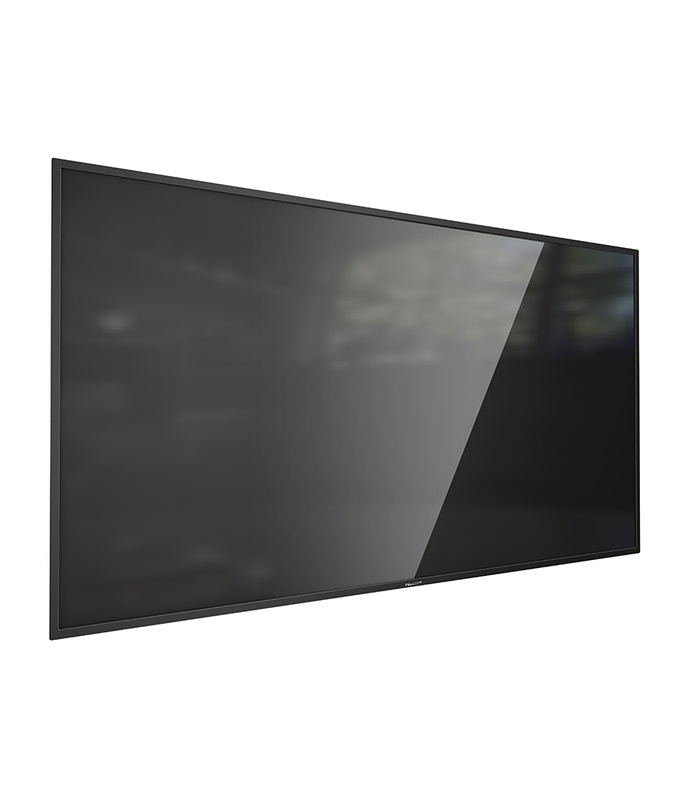

HISENSE 65″ 65B4E30T Series

Designed with SoC Technology, Hisense B4E30T Series’ Standard Signage Platform is an Integrated entry level platform for displaying media content as a PC-less solution.

Highlights:

System-On-Chip for Content Management
-Designed with dual core SoC technology (System on Chip), these displays can be used as digital signage monitors for both offline and cloud-based managed content. This means that you can rely on various content management systems to help display your advertising.

High-performance System Architecture
-With the internal memory which allows you to upload media into the display for instant playback, Hisense Standard Signage can save and play content without the need for a permanent external player. The internal memory also functions as a cache for online streaming.

Open Platform Support
-Our SoC supports API (Application Programming Interface) for solution providers/integrators to develop and integrate any Andorid-based application to be installed and used on our displays.

Embedded CMS Platform
-The built-in CMS (Content Management System) allows you to edit and play content or schedule a playlist. It makes content management much easier and more user-friendly.

Brightness/ Operational Time
-The professional panels used for E series are quality confirmed to operate 16 hours a day. Ideal for use in harshly lit environments, the displays also come with brightness levels of 400 nits.

USB Contents Management
-Auto-play feature, which can automatically show all your photos and video content.Contents can also be simply scheduled via USB, so additional server connection is not required, enabling easy content management.

Outstanding Picture Quality
-Ultra HD large screen delivers immersive viewing experience by 4 times higher definition picture quality than FHD, which enables customers to describe fine details without distortion.

Specifications:

Specifications:
-Backlight: DLED
-Size: 65”
-Resolution: 3840 x 2160
-Refresh Rate: 60HZ
-Color: 10Bit (8bits + FRC )
-Brightness: 400 Nits (Typ)
-Contrast(Typ): 1200:1 (Typ)
-Response Time(Typ): 8ms(Typ)
-Viewing Angle(Min.): 178°/178°
-Color Gamut: 68%
-Haze: 1%
-Orientation: Landscape & Portrait
-MTBF: 30000Hrs(Min)
-Operation Hours: 7 Day*16Hour
-OS:Android 5.1
-CPU: Dual Core A73-1.2GHz
-GPU: 5 Core Mali-450
-DDR: 2G
-ROM: 8G
-Language: Chinese/English
-WIFI: 2.4G/5G IEEE 802.11 Ac/A/B/G/N WC0SR2511T
-LAN: 10/100Mbps RJ45*1
-SD /TF Card: NO
-USB: USB 2.0*1 USB3.0*1
-INPUT: HDMI 2.0*2, VGA*1, Audio In
-Output: Headphone Jack*1
-Built In Speaker: 8W X2
-External: NO
-Remote: IR
-RS232: RS232*1（ RJ45）
-Operation Temperature: 0 – 40°
-Operation Humidity: 20% – 80%
-Input: AC 100V-240V@50-60HZ
-Standby Consumption: <0.5W (Standby Mode) -Off Consumption:<0.5W -Bezel Color: Black -Bezel Width(T/L/R/B): T/L/R:13.9mm ,B:14.9mm
